Non-standard Hot Dip Galvanizing Line Equipment Plant Machine with Customers Local Voltage

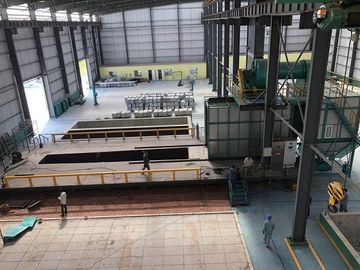

Hot galvanizing line is used to produce corrosion resistance and smooth layer on the surface of raw pipes after cleaning. The main equipments include: drying oven, heating furnace,galvanizing machine, drawing machine, drawing upward unit, pulling out roller, moving device, internal blowing with steam and air combination, laying flat device, cooling tank, spraying conveyor, mark conveyer, blue ring machine, electrical device,eyc. our company can produce hot galvanizing pipe mill of spec. between 1/2 inch to 10 inches.
1. Most of the equipment are packed by wooden boxes to reduce abrasion.
2. If the size of whole equipment is suitable for container ship usually by containers.
3. If the size is too big usually by bulk ship.
4. Freight ways are based on reducing cost for you!
Gantry 5's administrative interface has been completely.
The admin provides multiple options for styles, layout, particles.
Salient is built with a responsive layout, which means it automatically.
Raw material (welded pipes) —— Derosination —— Acid treatment —— Water cleaning —— Applying impregnant —— Drying —— Zinc hot-dipping —— External blowing —— Internal blowing —— Air cooling ——Water cooling —— Passivation —— Drying —— Marking —— Inspection —— Packaging —— Finished products.
Hot dip galvanizing machinery supplier
The pipe machine is used to produce corrosion resistance and smooth layer on the surface of raw pipes after cleaning.
hot galvanizing pipe mill is used to produce corrosion resistance and smooth layer on the surface of raw pipes after cleaning.
This system allow manual control interface in the pickling effect unqualified when artificial intervention, and real-time data recording, the formation of large data, the future through big data analysis, according to the acid concentration and temperature, the shape parameters, automatic formation of reasonable pickling process.
1. track is shared with an enclosed single beam, with a distance of about 32 meters.
2. configuration holder 2 sets, single set of hand load 10T, running speed of 10-20m/min;
3. supporting hand is equipped with vehicle control PLC, frequency converter, wireless communication module, code reader, track locator, RFID recognition system and so on to control the original device, and the protection level of electric control box is IP65.
4. system uses the sliding contact line, the collector supply of the car power supply; all units and the main control system adopts industrial control between wireless Ethernet, implementation of vehicle PLC and ground PLC master data exchange.
If any items interest you, please contact us.
Meanwhile, please tell us the following information.
(1) Materials to be galvanized
(3) Maximum weight
(4)Maximum capacity per hour
(6) Power source
