|Place of Origin:||China|
|Certification:||IS09001:2015 , ISO 45001:2018|
|Minimum Order Quantity:||1 set|
|Delivery Time:||5 weeks|
|Payment Terms:||L/C, T/T|
|Number Of Anode Tubes:||50 Sets Or 100 Sets||Airflow:||55000 Or 110000 Sets|
|Lifetime:||20 Years||Emission Concentration:||10~30 Mg/m3|
|Coating:||Galvanizing,Painting,Zinc Or Zn-Al||Product Name:||Hot Dip Galvanizing Plant/zinc Plating Equipment|
600mA hot dip galvanising machine,
20 mg/m3 hot dip galvanising machine,
zinc Coating esp electrostatic precipitator

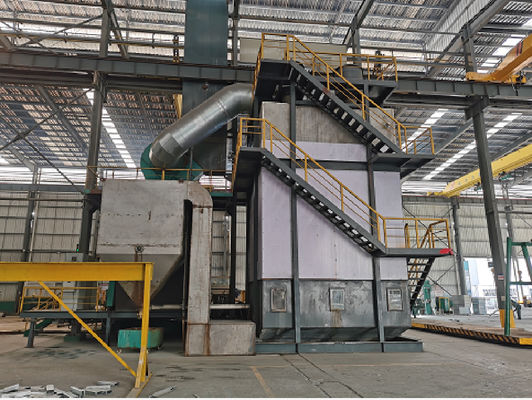

Hot Dip Galvanizing Zinc Smoke Wet Electrostatic Precipitator
Wet electrostatic precipitator is a kind of electrostatic adsorption to trap zinc smoke particles, And the use of water spray to dust removal equipment. It also has the function of removing ammonia from zinc smoke.It has the characteristics of high dust removal efficiency, small pressure loss, no moving parts, no secondary dust . It’s used to upgrade the bag dust collector subversive innovation products.
1. Between the anode tube (dust collecting electrode) and the cathode line (discharging electrode), tens of thousands of volts of direct current high voltage is applied, and the air is ionized, producing a large number of charged negative ions. The zinc smoke particles that enter the wet electricity with the smoke collide with negative ions to be charged, and move to the surface of the anode tube under the action of the electric field. After the charge is released, the zinc smoke particles are adsorbed by the anode tube.
2. Then rinse the inner surface of the anode tube with water spray to remove dust.
3. The working process of hygroelectric precipitator is a cyclic process in which dust is charged, absorbed and cleaned alternately.
|Number of anode tubes(set)||50||100||FRP or stainless steel|
|High-frequency electric source||80KV,300mA||80KV,600mA|
|Overall dimensions L*W*H(mm)||6500*5200*15300||6500*6500*15300||equipment’s body|
|Pretreatment scrubber tower(mm)||Φ2000*H6500||Φ2800*H6500|
|Auxiliary fan power(kw)||45||90|
|Lifetime||20 year||20 year|
1. Used for upgrading cloth bag dust collector, 100% avoid "paste bag" phenomenon, workshop without white smoke;
2. Fan power is only 50% of bag dust collector, lower emission concentration, longer life;
3. High dust removal efficiency, small pressure loss, no moving parts, no secondary dust;
4. Modular design, assembly, convenient construction, short installation cycle;
