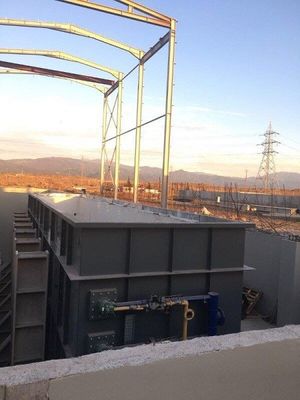

Exhaust Fan Wire Galvanizing Production Line Pickling Pretreatment Acid Gas Scrubber

1 set
Exhaust Fan Wire Galvanizing Production Line Pickling Pretreatment Acid Gas Scrubber
Features Gallery Product Description Request A Quote
Brand Name:: XLY
Processing Speed:: 100-240m/min
Name:: Acid Pickling Line
Size:: Oem
Color:: Customizable
Usage:: Acid Pickling
High Light:

oem Wire Galvanizing line


240m/min Wire Pickling line


240m/min Wire Pickling machine

Basic Infomation
Place of Origin: Jiangsu, China (Mainland)
Brand Name: XLY
Payment & Shipping Terms
Packaging Details: standard export packing
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 sets
Product Description

Exhaust Fan Wire Galvanizing Production Line Pickling Pretreatment Acid Gas Scrubber


Continuous Pickling Line

1. Fully enclosed pretreatment
2. Fully enclosed drying
3. Fully enclosed hot dip galvanizing
4. Near zero emissions to the atmosphere
5. Waste heat is recycled and re-used
6. Water recycled within the plant
7. Energy consumption is significantly reduced
8. Fully automatic handling equipment
9. Significantly improved workplace safety


Process Flow


Main equipments in process flow as follows:

Manually loading → entry saddle → coil loading trolley I# &II# → decoiler I# &II# → decoiling scraper I# &II# → 5-roller pinch straightener I# &II# → crosscut shearer I# &II# → vertical guide roller → welder → crescent shearer → pinch machine → entry looper → scale breaker → tensioner → vertical guide roller → acid pickling trough → washing trough → edge blowing device → vertical guide roller → hot air dryer → tensioner → exit looper → tensioner → crosscut shearer → exit pinch machine → recoiler (EPC) → coil unloading trolley → exit saddle → manually unloading


Process flow of continuous pickling line


Loading manually →Coil loading car→No.1 payoff reel → No.1 payoff scraper→No.2 payoff reel →No.2 payoff scraper →No.1 five-roll straightening leveler →No.2 five-roll straightening leveler →Deflector roll→Double-layer shear →Converge pinch roll →Welding machine →No.1 bridle roll →No.1 horizontal loop →No.1 CPC →No.2 bridle roll →descaler →No.3 bridle roll →No.2 double roll CPC →Pickling →Water washing →Drying →Loop →No.4 bridle roll →Pinch CPC unit →Scrap coiling →Three-roll tension roller →Exit shear →Oiling machine →Exit deflcting pressing roll→ Tension reel →Coil unloading car →Coi receiving table


This system allow manual control interface in the pickling effect unqualified when artificial intervention, and real-time data recording, the formation of large data, the future through big data analysis, according to the acid concentration and temperature, the shape parameters, automatic formation of reasonable pickling process.


1. track is shared with an enclosed single beam, with a distance of about 32 meters.

2. configuration holder 2 sets, single set of hand load 10T, running speed of 10-20m/min;

3. supporting hand is equipped with vehicle control PLC, frequency converter, wireless communication module, code reader, track locator, RFID recognition system and so on to control the original device, and the protection level of electric control box is IP65.

4. system uses the sliding contact line, the collector supply of the car power supply; all units and the main control system adopts industrial control between wireless Ethernet, implementation of vehicle PLC and ground PLC master data exchange.
