10 S Fiber 900 Pa Acid Fumes Extraction System With 2 Levels Contact Time

    • 10 S Fiber 900 Pa Acid Fumes Extraction System With 2 Levels Contact Time
    • 10 S Fiber 900 Pa Acid Fumes Extraction System With 2 Levels Contact Time
  • 10 S Fiber 900 Pa Acid Fumes Extraction System With 2 Levels Contact Time

    Product Details:

    Place of Origin: China
    Brand Name: XINLINGYU
    Certification: Loading
    Model Number: 15.0×2.0×3.0

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: USD
    Packaging Details: As per customers’ requirement
    Delivery Time: 30 DAYS
    Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
    Supply Ability: 1000000SETS
    Contact Now
    Detailed Product Description
    General Use:: Commercial Furniture Material: Glass Fiber Reinforced Plastic
    Spray Layer: 2 Levels Contact Time Socket:: 4 Sockets
    Window Material:: Transparent PVC Gas Liquid Ratio: 500:1





    10 s fiber 900 Pa Acid Fumes Extraction System with 2 levels contact time







    Model
    1200
    1500
    1800
    External Size
    1200*850*2350
    1500*850*2350
    1800*850*2350
    Working size
    900*700*1100
    1300*700*1100
    1500*700*1100
    Worktop height
    850mm
    850mm
    850mm
    Main material
    8mm PP board
    8mm PP board
    8mm PP board
    Window height
    750mm
    750mm
    750mm
    Illumination
    ≧300LUX
    ≧300LUX
    ≧300LUX
    Gas collecting hood size
    ¢250
    ¢250
    ¢315
    Exhaust air rate
    1200m³/h
    1500m³/h
    1800m³/h






    Note:

    1. above sizes are standard sizes.
    2. customized sizes are available.
    3. price without ventilation system, draught fan and tube sizes depend on laboratory layout on site.





    Acid Fume Extraction System Introduction

    Activated carbon is a very small carbon particles, it has a large surface area and there are smaller holes in the carbon particles - the capillary. This kind of capillary has a strong adsorption capacity because the surface area of the carbon particles is large. It can contact with the gas (impurities) when these gases (impurities) hit the capillary was adsorbed, from the purification effect. Activated carbon adsorption is the essence of use activated carbon adsorption characteristics of low concentrations of high-volume air in the organic solvent adsorption to activated carbon. Activated carbon adsorption method is mainly used for the removal of low concentration of gaseous pollutants.

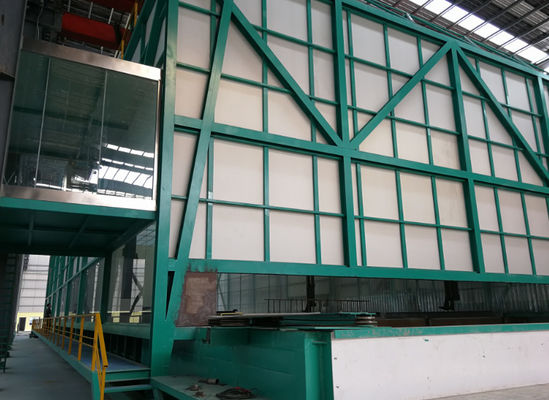

    The tank to purify acid fumes in hot dip galvanized line

    • Equipment appearance: Φ4000 m ×7.3m
    • Material : glass fiber reinforced plastic
    • Processing volume: 60000 m3 / h empty tower wind speed: 1.5 m/s
    • Spray layer: 2 levels contact time: total resistance: 10 s
    • Purification tower : 900 Pa
    • Raschig ring, pall ring filler height: 500 mm (2 levels)
    • gas liquid ratio: 500:1







    FAQ

    Are you trading company or manufacturer ?

    A: We are manufacturer listed in stock market

    Q: Do you have project running?

    A: Yes, we could offer a variety of running project for your checking.
