Automatic Control acid pickling line,
Steel Coil acid pickling line,
Steel Coil continuous pickling line
XLY Automatic control system for pickling Acid Pickling Line with Reasonable and customerized

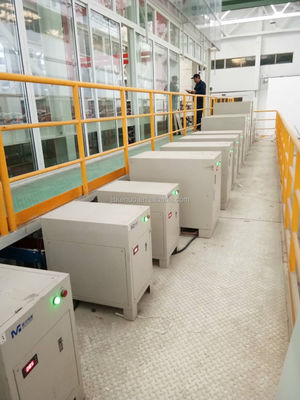

Continuous Acid Pickling Line
The hot rolled steel coil & hot stainless steel coil which are the basic raw material are passed through the continuous pickling line to remove the oxides from strip surface to enable further coil processing. This processing is requires since rust is formed on the surface of the coils at room temperature.
This system adopts the vertical arm hand type lifting device, compared with the traditional vehicle or electric hoist, with accurate positioning, no shake, can achieve a stable sling hold up and down, to avoid the slings and workpiece fall into the acid pool, and my company independent research and development of the hoisting device, with the PLC automatic control program, can be intelligent the lifting task is adjusted by the process of pickling time recording processing groove, adjust the hand task, reduce the load time, the precise control of the pickling time and automatically enter and put forward into the next process of pickling tank tank.
Process flow of continuous pickling line
Loading manually →Coil loading car→No.1 payoff reel → No.1 payoff scraper→No.2 payoff reel →No.2 payoff scraper →No.1 five-roll straightening leveler →No.2 five-roll straightening leveler →Deflector roll→Double-layer shear →Converge pinch roll →Welding machine →No.1 bridle roll →No.1 horizontal loop →No.1 CPC →No.2 bridle roll →descaler →No.3 bridle roll →No.2 double roll CPC →Pickling →Water washing →Drying →Loop →No.4 bridle roll →Pinch CPC unit →Scrap coiling →Three-roll tension roller →Exit shear →Oiling machine →Exit deflcting pressing roll→ Tension reel →Coil unloading car →Coi receiving table
This system allow manual control interface in the pickling effect unqualified when artificial intervention, and real-time data recording, the formation of large data, the future through big data analysis, according to the acid concentration and temperature, the shape parameters, automatic formation of reasonable pickling process.
1. track is shared with an enclosed single beam, with a distance of about 32 meters.
2. configuration holder 2 sets, single set of hand load 10T, running speed of 10-20m/min;
3. supporting hand is equipped with vehicle control PLC, frequency converter, wireless communication module, code reader, track locator, RFID recognition system and so on to control the original device, and the protection level of electric control box is IP65.
4. system uses the sliding contact line, the collector supply of the car power supply; all units and the main control system adopts industrial control between wireless Ethernet, implementation of vehicle PLC and ground PLC master data exchange .
