|Place of Origin:||Jiangsu, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Packaging Details:||standard export packing|
|Delivery Time:||90 days|
|Payment Terms:||L/C, D/A, D/P, T/T|
|Supply Ability:||10 sets|
|Brand Name::||XLY||Place Of Origin::||Jiangsu, China (Mainland)|
|Name::||Acid Pickling Line||Size::||Oem|
|Pickling::||Fume Free||Usage::||Acid Pickling|
nitric hydrofluoric acid pickling,

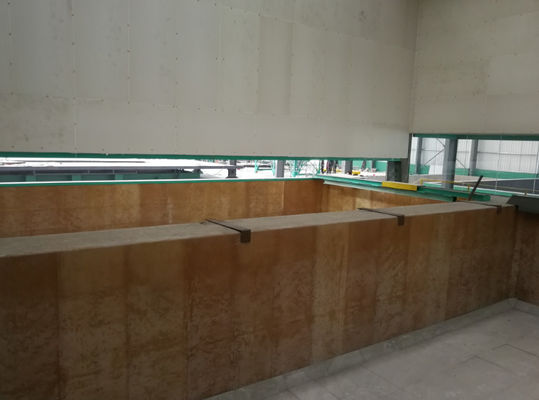

Automatic Steel Wire continuous pickling line Acid Pickling Line
We offer Push-Pull, semi-continuous and continuous pickling lines.
Push-Pull lines process one coil at a time, thus removing the need for joining strips. This allows tremendous flexibility of operation and ensures ease of operation and maintenance. As there is no need for accumulators in such lines, these lines have very low cost of investment and are very much cost-effective for medium volume of production.
The material from the Hot Rolling Mills is generally descaled and chemically treated by passing it through a bath of hydrochloric or sulphuric acid and rewound into coils to be sent to the reducing mills.
Our engineering ensures maximum utilisation of the acid for pickling and least wastage through effluents, thus resulting into low consumption of acid per ton of production. Efficient recycling of acidic water in the system reduces drastically the consumption of water per ton.
Additional features like Edge-Trimming, Skin-Passing, Coating, Cut-To-Length etc. can be incorporated as per the requirements of the customer.
Process flow of continuous pickling line
Loading manually →Coil loading car→No.1 payoff reel → No.1 payoff scraper→No.2 payoff reel →No.2 payoff scraper →No.1 five-roll straightening leveler →No.2 five-roll straightening leveler →Deflector roll→Double-layer shear →Converge pinch roll →Welding machine →No.1 bridle roll →No.1 horizontal loop →No.1 CPC →No.2 bridle roll →descaler →No.3 bridle roll →No.2 double roll CPC →Pickling →Water washing →Drying →Loop →No.4 bridle roll →Pinch CPC unit →Scrap coiling →Three-roll tension roller →Exit shear →Oiling machine →Exit deflcting pressing roll→ Tension reel →Coil unloading car →Coi receiving table
This system allow manual control interface in the pickling effect unqualified when artificial intervention, and real-time data recording, the formation of large data, the future through big data analysis, according to the acid concentration and temperature, the shape parameters, automatic formation of reasonable pickling process.
1. track is shared with an enclosed single beam, with a distance of about 32 meters.
2. configuration holder 2 sets, single set of hand load 10T, running speed of 10-20m/min;
3. supporting hand is equipped with vehicle control PLC, frequency converter, wireless communication module, code reader, track locator, RFID recognition system and so on to control the original device, and the protection level of electric control box is IP65.
4. system uses the sliding contact line, the collector supply of the car power supply; all units and the main control system adopts industrial control between wireless Ethernet, implementation of vehicle PLC and ground PLC master data exchange.
We will offer basic layout and electrical system diagram of production line within 30 days after signing the contact.
We will supply all information when delivery ,including line electrical drawing,original manual of equipment and instrument table,equipment conformity certificates,list of spare parts,equipement maintanance procedures,drawing and suppliers of quick-wear pats.
We will send engineer and high level technician when installing the production line.
We will test the whole line for one month and train the operater.
We will send engineers to service machinery overseas if necessary .
Contact Person: Mr Wu
